Polymer Films compared

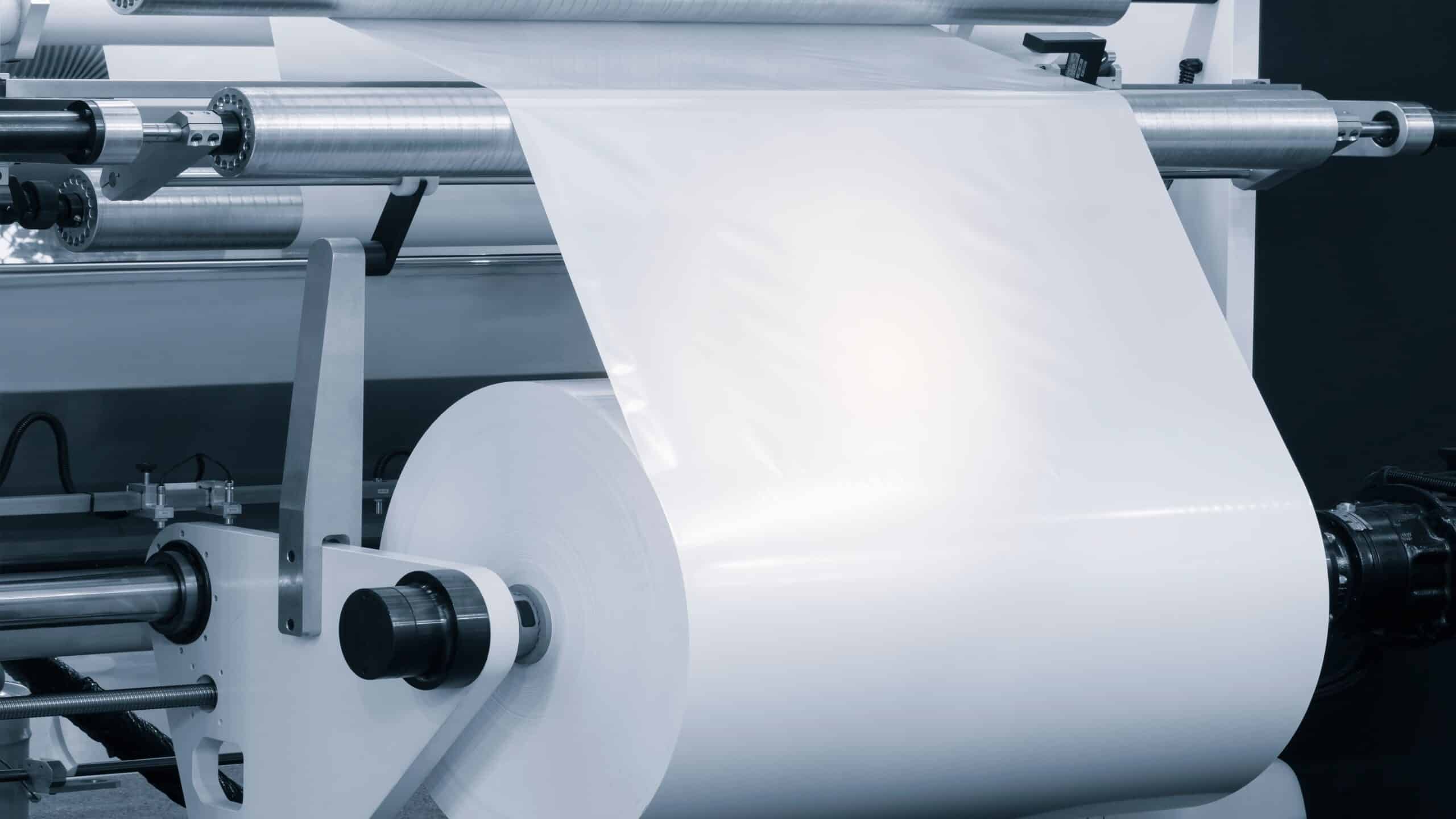

Machine in a factory unwinding transparent plastic film from a large roll.

Contents

Manufacturing

Units BOPET BOPP PVC
Manufacturing ./. Extrusion Extrusion Calendering
Stretching ./. biaxially biaxially none or additionally transverse
Thickness Range µm 1 to 500 4 to 80 30 to 100 unstretched (100 to 600 unstretched)

Mechanical typical values

Units BOPET BOPP PVC
Tensile strength MD
TD		 N/mm²
N/mm²		 200
200		 150
250		 50
50
Elongation at break MD
TD		 %
%		 100
100		 150
50		 10
10
Tensile stress required to cause 5% elongation MD
TD		 N/mm²
N/mm²		 100
100		 ./.
./.		 ./.
./.
Test Standard ./. ISO 527-1-2 ISO 527-1-2 ISO 527-1-2.
Test Conditions ./. Testing rate 100%/min, 23°C, 50% r.h. Testing rate 100%/min, 23°C, 50% r.h. Testing rate 100%/min, 23°C, 50% r.h.
Young’s modulus MD
TD		 N/mm²
N/mm²		 4500
4500		 2500
4500		 ./.
./.
Test Standard ./. ISO 527-1-2 ISO 527-1-2 ISO 527-1-2
Test Conditions ./. Testing rate 1%/min, 23°C, 50% r.h. Testgeschwindigkeit 1%/min, 23°C, 50% rel. Feuchte Testing rate 1%/min, 23°C, 50% r.h.

Electrical Technical Values

Units BOPET BOPP PVC
Dielectric constant ./. 3.3 2.2 4.2
Dielectric dissipation factor ./. 0.002 0.0002 0.02
Test standard ./. DIN 40634 DIN 40634 DIN 40634
Test conditions ./. 23°C, 50 Hz 23°C, 50 Hz 23°C, 50 Hz

Dimension Stability

Units BOPET BOPP PVC
Thermal Shrinkage MD % 1 to 3 (150°C) 3 to 5 (120°C) 4 to 7 (140°C)
TD % 0 to 2 (150°C) 0 to 2 (120°C) -0,5 to 2 (140°C)
Test Standard ./. DIN 40634 DIN 40634 DIN 40634
Test Conditions ./. 150°C, 15 min 120°C, 15 min 140°C, 15 min

Thermal Typical Values

Units BOPET BOPP PVC
Melting Point °C 260 166 200 bis 220
Glass transition temperature °C 70 -20 80
Test standard ./. DSC DSC DSC
Test conditions ./. 3 K/min 3 K/min 3 K/min

Barrier Data

(85% r.h.)
100 µm thickness, 23°C Units BOPET BOPP PVC
Oxygen (0% r.h.) cm3 /m² x d x bar 17 250 40
Test standard ./. DIN 53380 DIN 53380 DIN 53380
Test conditions ./. 23°C 23°C 23°C
Water vaporg/m² x d 2 0.25 3
Test standard ./. DIN 53122 DIN 53122 DIN 53122
Test conditions ./. 23°C 23°C 23°C

Other

Units BOPET BOPP PVC
Density g/cm 3 1.4 0.9 1.4
Test standard ./. ASTM D 1505-68 Method C ASTM D 1505-68 Method C ASTM D 1505-68 Method C
Test condition ./. 23°C 23°C 23°C
Water absorption % 0,5 < 0,1 0,5
Test standard ./. DIN 53472 and ASTM D 570 DIN 53472 and ASTM D 570 DIN 53472 and ASTM D 570
Test condition ./. Immersed in water for 4 days at 23°C Immersed in water for 4 days at 23°C Immersed in water for 4 days at 23°C

This information provided here is consistent with the current state of our knowledge and is intended to provide general information on our products and their applications. It does not constitute a guarantee of any specific product attributes or the suitability of products for specific applications. Any existing commercial rights or patents must be observed. We guarantee full product quality under the terms of the General of MITSUBISHI POLYESTER FILM GmbH
